WARC High Power Triplexer General Specification:

  • Insertion Loss                        < 0.1 dB
  • Band Port Isolation              > 45 dB (see graphs below)
  • Return Loss                             > 28 dB
  • Triplexer bands:                   10MHz – 18MHZ – 24MHZ

 CW/SSB Recommended Output Power with antenna VSWR < 1.5

  • 2500W CW/SSB to any band port with one signal at a time (SO2R / M2 category)
  • 2000W to every band port if all three bands used simultaneously (MM category)
  • 1500W no problem to any band port without a cooling fan installed.

Please, see all graphs below.

12M Band graphs below:

  • Insertion Loss < 0.1 dB
  • 17M Band Isolation > 45dB
  • 30M Band Isolation > 50dB
  • VSWR < 1.05 (Return Loss > 30dB)

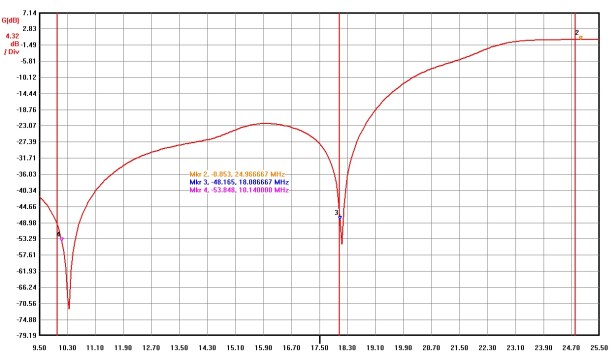

warc_24_il

warc_24_swr

  • Xs parameter is equal 0 on a resonance frequency

17M Band graphs below:

  • Insertion Loss < 0.1 dB
  • 12M Band Isolation > 45dB
  • 30M Band Isolation > 45 dB
  • VSWR < 1.07 (Return Loss > 28dB)

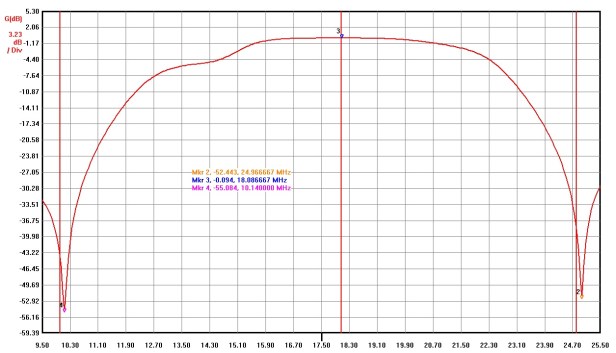

warc_18_il

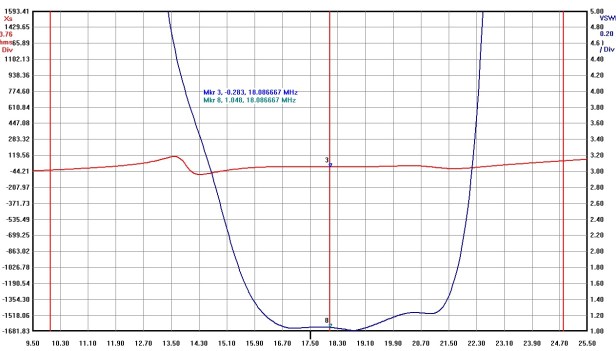

warc_18_swr

  • Xs parameter is equal 0 on a resonance frequency

30M Band graphs below:

  • Insertion Loss < 0.1 dB
  • 12M Band Isolation > 50dB
  • 17M Band Isolation > 60 dB
  • VSWR < 1.05 (Return Loss > 30dB)

warc_10_il

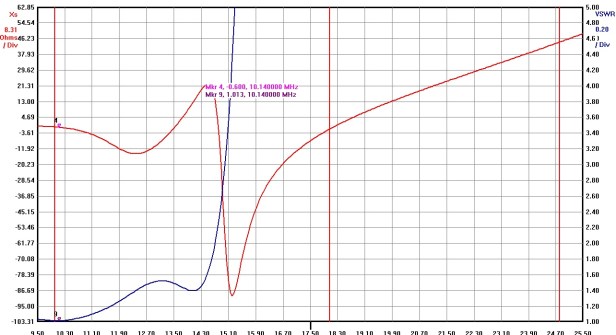

warc_10_swr

  • Xs parameter is equal 0 on a resonance frequency
