Please, for all sale related information contact me from Contacts page or by email: va6am.sale@gmail.com
- On this page you can find some other items for sale.
All Prices are in US dollars

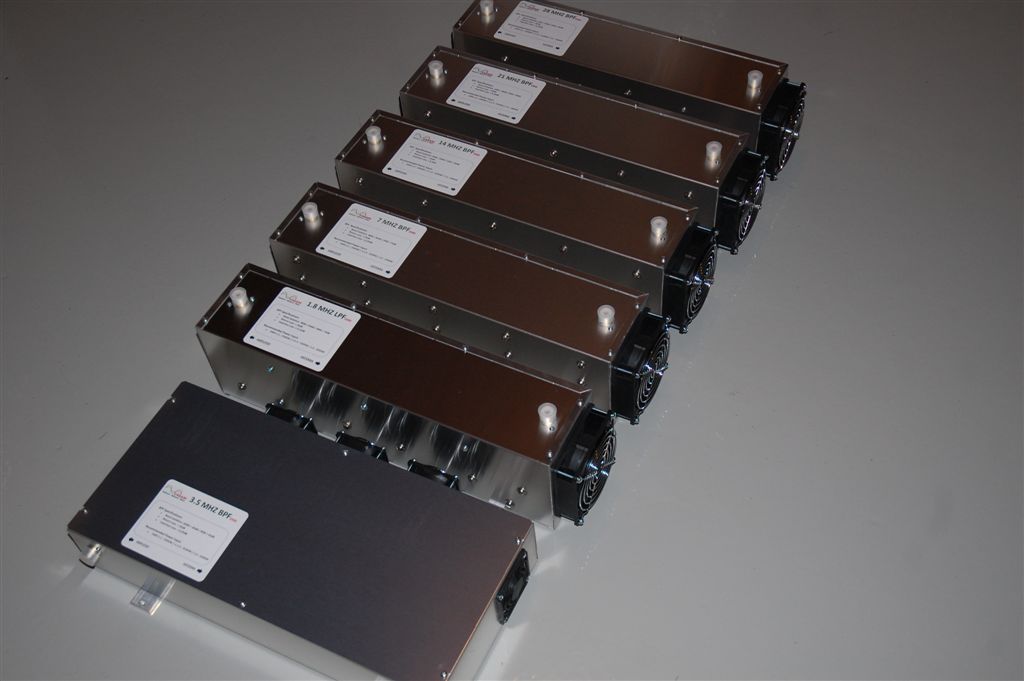

High Power Items :
- All HP filter parts are the same and good for up to 4500W PEP of output power.
- The difference between HP filter versions is the cooling efficiency and an enclosure dimensions.
Up to 3500 watt Triplexer and BPFs:
Please, read all detailed specifications using links from a Band column.
| BPF / Triplexer | Power (50/100 CFM) | Price |
| 10 | 2000W/3000W | $325.00 |
| 15–20 | 2500W/3500W | $315.00 |
| 40 | 2500W/3000W | $335.00 |
| 80 | 3000W | $355.00 |
| 160 LPF | 3000W | $335.00 |
| 160 BPF | 3000W | $375.00 |
| HP Triplexer | 3500W to each port | $465.00 |
- Upgrade to 82-100 CFM fan $21.00 (not applied to 80M , 160M LPF and Triplexer)
- Wall Installation Hardware $14.00 per box
Warranty: 1 year for all parts inside the high power triplexer and BPFs.
- 2.1mm DC power connectors installed (5.5mm OD).
- UHF Teflon connectors
- N type or DIN 7/16 connector types can be installed as well
- Recommended power with cooling fans < 3500W ICAS
- 1411ZU (17″ x 4″ x 5″) Hammond enclosures , 80M band (17″ x 8″ x 3″)
For all 12VDC cooling fans you need 2.1mm power plug, something like this one.

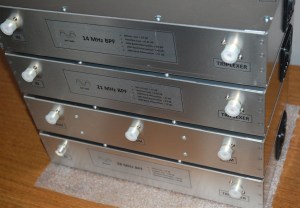

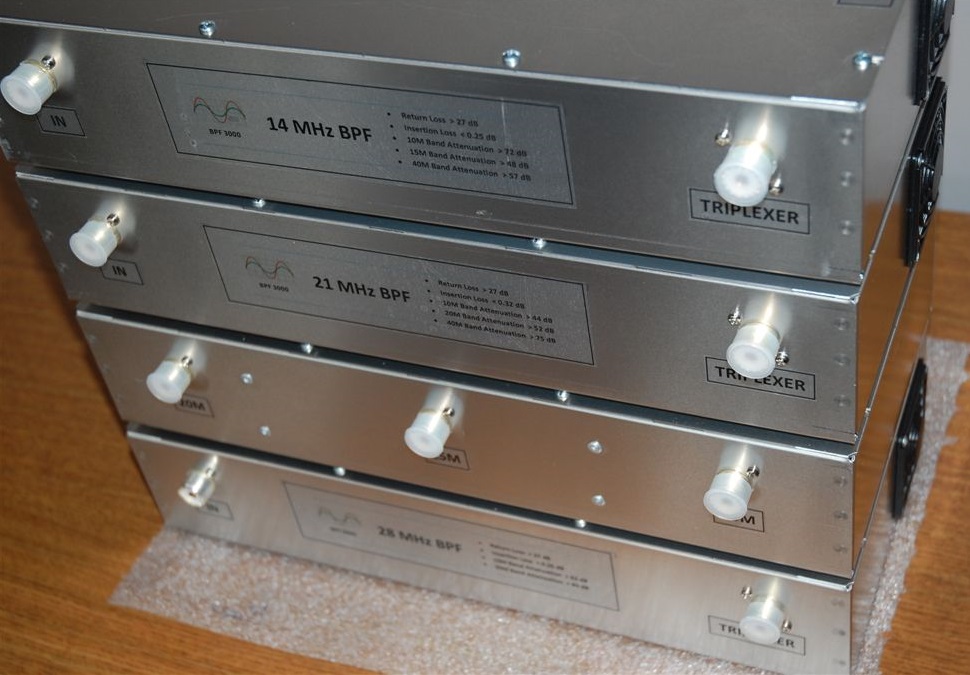

2000 watt PEP Triplexer and BPFs:
Please, read all detailed specifications using links from a Band column.
- All prices for this enclosure are with No Cooling Fans Installed
| BPF / Triplexer | Input Power (No Cooling) | Price per box |
| 10 | 1500W PEP | $303.00 |
| 15-20 | 1800W PEP | $268.00 (4th order) |
| 15-20 | 1800W PEP | $303.00 (5th order) |
| 40 – 160 | 2000W PEP | $335.00 (5th order) |
| 80 | 2000W PEP | $358.00 (5th order) |
| HP Triplexer | 2000W PEP each Band Port | $469.00 |
Warranty: 1 year for all parts inside the high power triplexer and BPFs.
- UHF Teflon connectors
- Add $20.00 for 17″ enclosures for Triplexer
- All parts rated to 3500 watts of an amplifier output power.
- 1444-1573 (15″ x 7″ x 3″) or for 5th order filters 1444-1773 (17″ x 7″ x 3″) Hammond enclosures used
- A few 60mm cooling fans can be installed to increase input power up to 3000W
High Power 10-15-20 / 40-80-160 Split Diplexer : $391.00 (with 50 CFM 12 VDC fan)
- Insertion Loss (IL) < 0.07dB
- Band Isolation > -50dB for High Bands(10-15-20)
- Band Isolation > -45dB for Low Bands(40-80-160)
- Return Loss (RL) > 27dB
- 2000 watt ICAS output power no cooling required
- 3000 watt output power (50 CFM cooling fan recommended)
- 2.1mm DC power connectors installed.
- UHF Teflon connectors
- 1411ZU (17″ x 4″ x 5″) Hammond enclosures used
Warranty: 1 year for all parts inside the Diplexer.

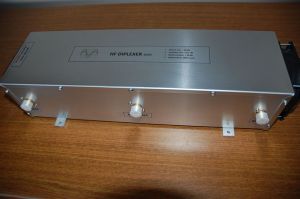

High Power 40/80M Diplexer : $331.00 (add $21.00 for a 50CFM 12 VDC fan)
- Insertion Loss (IL) < 0.08dB
- Band Isolation > -35dB for 7.0-7.3 MHz
- Band Isolation > -30dB for 3.5-3.8 MHZ
- Return Loss (RL) > 30dB
- 2000 watt ICAS output power no cooling required
- 3000 watt output power (50 CFM cooling fan recommended)
- 2.1mm DC power connectors installed.
- UHF Teflon connectors
- 1411ZU (17″ x 4″ x 5″) Hammond enclosures used
Warranty: 1 year for all parts inside the Diplexer.
- 2000W 10-15-20 HF Triplexer (3 empty boards): $47.00
- 2000W 40-80-160 HF Triplexer (3 empty boards): $47.00

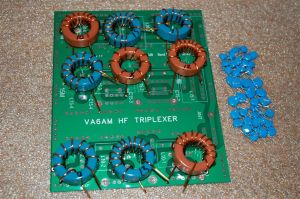

- HP Triplexer Set (3 boards, 20 doorknob capacitors, 2 toroids T130-0) : $182.00
- Please, read 2000W HF 10-15-20 Triplexer Builder Guide
- Triplexer can be built in Hammond 1444-1573 (15″ x 7″ x 3″) or larger box
- Some other parts (enclosure, connectors, wire, shields can be supplied if available
- Aluminum shields should be installed between bands inside the enclosure
- On a photo above, three fully assembled Triplexer boards which are not for a sale. Only empty PCB triplexer boards can be sold.
All Prices are in US dollars
Low Power Items:
- Low Power Triplexer with 10-15-20 BPFs: $529.00
- Low Band Triplexer with 40-80-160 BPFs : $559.00
- Total Triplexer with BPFs band Isolation is better than -70dB.
- Isolation between 10 and 20 meter band > -100 dB.
- Total Insertion Loss < -0.55 dB (10-15-20 Triplexer < – 0.15dB, BPFs: 20M < – 0.3dB, 15M and 10M < – 0.4dB)
- Total Insertion Loss < -0.4 dB (40-80-160 Triplexer < – 0.1dB, BPFs: < – 0.3dB)
- Return Loss > 25dB
Recommended BPF Power with antenna VSWR < 1.5:
- 200W CW/SSB /RTTY (ICAS)
- 100W 100% Duty Cycle
- Low Power BPF empty board: $6.50
- Capacitor set (18pcs) : $10.00 (3kV or 6kV TDK capacitors)
- 4 Iron Powder toroids: $11.00 -$13.00 (price based on toroid types)
- Schematics provided with the BPF board purchase

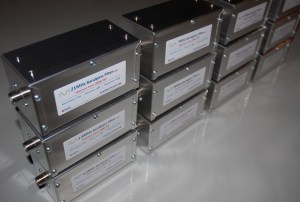

HF Low Power band-pass filters (10, 15, 20, 40, 80, 160)
- LP Band-Pass HF filters: $95.00 (10M BPF: $105.00)
- 6 BPFs set (10-15-20-40-80-160) : $580.00

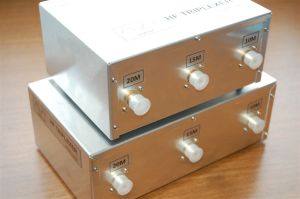

- Low Power 10-15-20 Triplexer 1411RU: $239.00
- Low Power 40-80-160 Triplexer : $269.00
- Low Power 10-15-20 / 40-80-160 Split Diplexer : $219.00
- 100 watt 100% duty cycle or 200 watt PEP
- Enclosure Hammond 1411RU (8″ x 6″ x 3.5″).
- The original Micrometals Iron Powder cores and TDK low-dissipation capacitors used.
- Any Triplexer can be used as a Diplexer if unused band port terminated with 50 Ohm load.
- Assembled 10-15-20 Triplexer board (Not tuned): $145.00
- Assembled 40-80-160 Triplexer board (Not tuned): $175.00
- Triplexer V1.06 and above fully assembled board
- Board is for Hammond 1411RU
- The board size is 6.80″ x 5.60″ (174 x 142 mm).
- 10-15-20 Triplexer Set: $96.00
- 40-80-160 Triplexer Set: $126.00
- Triplexer board (1 pcs)
- Capacitor set (47 pcs)
- All pre-wound MIcrometals Iron Powder toroids (T130-0, T130-17, T130-2)
Triplexer Board good for 10-15-20 or 40-80-160 meter bands $22.50
- The board size is to fit into 1411RU or 1411UU Hammond enclosure.
- Air coils soldered directly into UHF connectors.
- The board size is 6.80″ x 5.60″ (174 x 142 mm).
Set of 47 TDK 3 or 6 kV capacitors (10-15-20 Triplexer) $22.50
- This is a set of all required capacitors to build the triplexer. Every required triplexer capacitance consists of 4 or 5 TDK capacitors.
Set of 9 Micrometals Iron Powder Toroids (without wires)
- T130-17 (5pcs) and T130-0 (4pcs) for 10-15-20 band Triplexer – $23.00
- T130-17 (4pcs) and T130-2 (5pcs) for 40-80-160 band Triplexer – $24.00
Micrometals Iron Powder Toroids:
- T130-17 – $3.20
- T130-0 – $1.90
- T130-2 – $2.20
- T200-2 – $5.80
